BROWNFIELD INVESTIGATION

Brownsfield Investigation

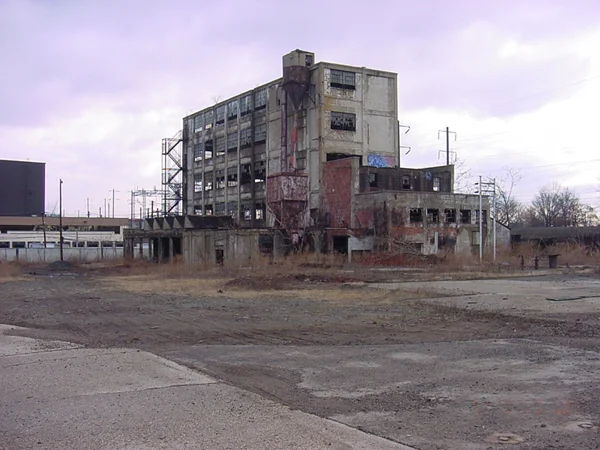

Site: Former Industrial Property – Essex County

Project Concerns: Envirotactics performed investigation of a Brownfields site for a municipality in EssexCounty with grant funds provided by the NJDEP. The site was a large tract located within an urban area that formerly manufactured chemicals, pharmaceuticals, organic intermediates, fragrances and flavors. Prior to Envirotactics involvement the environmental conditions at the site were unknown.

Investigation: Initially a Preliminary Assessment was conducted that identified over 20 areas of concern that required investigation. Determining the areas of concern required intensive investigation of historical documents for the site including historic site maps, Sanborn insurance maps and various other records maintained. The initial site investigation consisted of the installation of soil borings, test pits, temporary well points and monitoring wells. A total of approximately 70 soil samples were collected for priority pollutant plus forty analysis and 8 monitoring wells were installed. Several rounds of groundwater sampling were performed to document groundwater conditions. The contaminants of concern consisted of volatile organics, petroleum hydrocarbons, base neutral compounds and metals in both the groundwater and soil. Based on the initial investigation a Preliminary Assessment Report, Site Investigation Report and Remedial Investigation Workplan were submitted to the NJDEP and approved.

The remedial investigation phase consisted of the delineation of the contaminants detected during the initial site investigation. An additional approximate 80 soil samples were collected and another 9 monitoring wells for the vertical and horizontal delineation of contaminants of concern were installed. The groundwater investigation included determining groundwater flow, aquifer characteristics and performing a receptor evaluation. Following completion of the remedial investigation, a Remedial Investigation Report and Remedial Action Workplan was submitted to the NJDEP.

Successful Conclusion: The use of grant money allowed the municipality to identify and quantify the contamination present at an abandoned property. Based on the work conducted by Envirotactics, the municipality was able to sell the property to a developer which will put the property back on the tax roll.

CAFRA PERMITTING


Site: Municipal Park – Monmouth County, NJ

Project Concerns: Envirotactics was contracted to prepare and submit a CAFRA Individual Permit for the re-development of a municipal park. The park was used for mixed recreation and had baseball fields, a concession stand, tennis courts, playground areas and a small boat launch area. Due to the waterfront location of the park CAFRA and coastal wetlands were a concern.

Services: Envirotactics prepared the CAFRA individual permit application for submission to the NJDEP Components of the application included: the delineation of coastal wetlands, a preliminary wildlife habitat assessment, and preparation of a compliance statement in accordance with CAFRA regulations. The CAFRA application addressed and provided compliance for all environmental constraints addressed under the CAFRA regulations. Specifically, coastal wetlands and coastal wetlands buffers, threatened and endangered species, flood hazard areas, coastal bluffs and impervious coverage requirements. The permit application was submitted and Envirotactics acted as the agent on the client’s behalf.  Once the application packet was submitted to the NJDEP, Envirotactics provided application support. This included all correspondence, meetings, and site visits with the NJDEP, the client and others involved in the development including: engineers, architects, and attorneys.

Successful Conclusion: The CAFRA Individual Permit was approved by the NJDEP and the redevelopment of the park began in 2008.
